| Part Number | “W” in. (mm) | “L” in. (mm) | Roller in. (mm) | Material | Max. Pipe Capacity | Max. Uniform Load | Wt. Each Lbs |
| 3-RAH-7 HDG | 8″ (203.2) | 14″ (255.6) | 3″ (76.2) | Hot-Dipped Galvanized | 3″ ID 33/4″ OD | 100 lbs. | 3.3 |
| 3-RAH-7 SS | 8″ (203.2) | 14″ (255.6) | 3″ (76.2) | Stainless Steel | 3″ ID 33/4″ OD | 100 lbs. | 3.3 |
| 4-RAH-7 HDG | 12.07″ (306.6) | 16.07″ (408.2) | 5″ (127) | Hot-Dipped Galvanized | 4″ ID 5″ OD | 150 lbs. | 6.8 |
| 4-RAH-7 SS | 12.07″ (306.6) | 16.07″ (408.2) | 5″ (127) | Stainless Steel | 4″ ID 5″ OD | 150 lbs. | 5.8 |
Note: Optional 4-RAH Pipe Strap aluminum w/SS Screws
| Part Number | Material | Max. Uniform Load | Max. Pipe Size | Wt. / Ea. Lbs. |

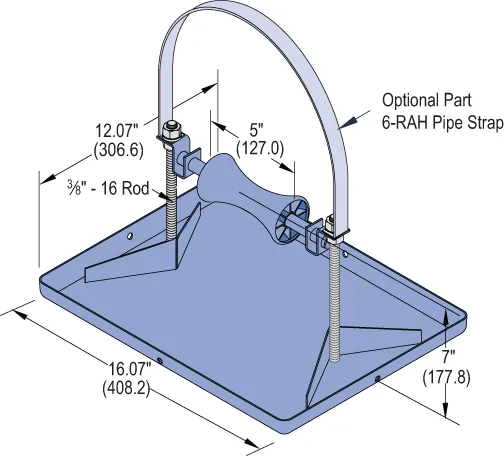

| 6-RAH-7 HDG | Hot-Dipped Galvanized | 150 lbs. | 6″ ID 81/2″ OD | 8.8 |
| 6-RAH-7 SS | Stainless Steel | 150 lbs. | 6″ ID 81/2″ OD | 8.8 |
Note: Optional 6-RAH Pipe Strap aluminum w/SS Screws
