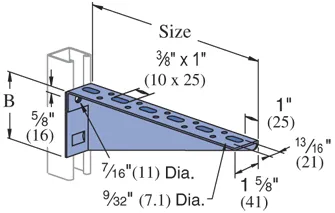

Standard Dimensions:
- Hole Diameter: 9/16″ (14mm)
- Hole Spacing (From End): 13/16″ (21mm)
- Hole Spacing (On Center): 1-7/8″ (48mm)
- Width: 1-5/8″ (41mm)
- Thickness: 1/4″ (6mm)
Note:
- When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.
- Material : 12 Gauge Steel
- R – As shown; L – Opposite hand
- Safety Factor – 2-1/2
| Part No. | Finish | Size | Weight | Box Qty. |
| P2496R | GR | 16″ Right | 223.00 | 20 |
| P2497L | GR | 18″ Left | 266.00 | 20 |
| P2496L | GR | 16″ Left | 223.00 | 20 |
| P2497R | GR | 18″ Right | 266.00 | 20 |
| P2495R | GR | 14″ Right | 173.00 | 25 |
| P2498L | GR | 20″ Left | 308.00 | 20 |
| P2495L | GR | 14″ Left | 173.00 | 25 |
| P2498R | GR | 20″ Right | 308.00 | 20 |
| P2494R | GR | 12″ Right | 152.00 | 25 |
| P2499L | GR | 22″ Left | 355.00 | 20 |
| P2499R | GR | 22″ Right | 355.00 | 20 |
| P2494L | GR | 12″ Left | 152.00 | 25 |
| P2494L | EG | 12″ Left | 152.00 | 25 |
| P2496R | EG | 16″ Right | 210.00 | 20 |
| P2494R | EG | 12″ Right | 152.00 | 50 |
| P2494L | HG | 12″ Left | 161.10 | 25 |
| P2499L | HG | 22″ Left | 366.00 | 20 |
| P2498R | HG | 20″ Right | 326.00 | 20 |
| P2494R | HG | 12″ Right | 161.10 | 25 |
| P2495L | HG | 14″ Left | 183.40 | 25 |
| P2497R | HG | 18″ Right | 265.00 | 20 |
| P2495R | HG | 14″ Right | 183.40 | 25 |
| P2497L | HG | 18″ Left | 265.00 | 20 |
| P2496L | HG | 16″ Left | 237.00 | 20 |
| P2496R | HG | 16″ Right | 236.40 | 20 |
| P2499R | HG | 22″ Right | 366.00 | 20 |
| P2496R | PL | 16″ Right | 223.00 | 20 |
